2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater

2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater

صورة كبيرة :  2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater

تفاصيل المنتج:
إصدار الشهادات: CE, RoHS, FCC
وثيقة: كتيب المنتج PDF
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: 28000

2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater

وصف
نموذج لا.: JP-1936st تكرار: 40 كيلو هرتز / 28 كيلو هرتز
قوة: 0-46.8kw قوة التدفئة: 66 كيلو واط
وزن صافي: 4000 كجم الوزن الإجمالي: 4300 كجم
سعة: 7280L / 2000 جالون حجم الخزان: 3.5*1.6*1.3m
حجم الوحدة: 390*200*200 سم حجم الحزمة: 400*210*210 سم
مادة: الفولاذ المقاوم للصدأ SUS304 سمك الخزان: 3 مم
قوة الموجات فوق الصوتية: 46800W تحديد درجة الحرارة: درجة حرارة الغرفة ~ 95 درجة مئوية قابلة للتعديل
تحميل سلة: 2000 كجم
إبراز:

2000 gallon ultrasonic cleaner,ultrasonic cleaner for AC coils,industrial ultrasonic cleaner with heater

,

ultrasonic cleaner for AC coils

,

industrial ultrasonic cleaner with heater

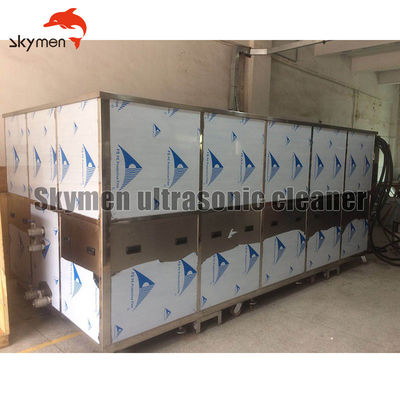

2000 Gallon Ultrasonic Cleaning Bath for AC Evaporator and Condenser Coils with Heater
Why Clean AC Coils?
Cleaning AC coils improves system efficiency. When coated with dirt or grime, coils cannot transfer heat effectively, forcing the system to work harder and longer. Neglecting this maintenance can lead to costly repairs and potential system failure.
Consequences of Dirty AC Coils
  • Reduced efficiency: Dirty evaporator coils cannot absorb adequate heat, requiring near-constant operation to maintain temperature
  • Higher energy consumption: Increased runtime leads to significantly higher utility bills
  • Accelerated wear: Excess pressure and heat degrade components faster, leading to multiple system failures
  • Refrigerant leaks: Corrosion from pollutants creates cracks in coils, allowing refrigerant to escape
  • Premature system replacement: Compressor strain from non-functioning coils may require complete system replacement
Ultrasonic Cleaning Advantages
Ultrasonic technology provides superior cleaning for condenser coils, removing built-up contaminants efficiently and thoroughly.
Technical Specifications
Model JP-1923ST
Function Ultrasonic cleaning
Ultrasonic Frequency 28/40kHz (customizable)
Tank Material SUS 304 (SUS 316 customizable)
Tank Thickness 3mm
Inner Dimensions 3500×1600×1300mm
Capacity 7280L
Transducers 936pcs
Ultrasonic Power 46800W
Heating Power 66000W
Ultrasonic Timer 0-99 hours
Temperature Range Room temperature to 95°C adjustable
Drain Valve Included
Water Inlet/Outlet Included
Generators 26 sets (1800W each)
Basket Capacity 2000KG
Packing Dimensions 400×210×210cm (wooden case)
Weight 4000KG (N.W.) / 4300KG (G.W.)
Power Supply 380V 3 phase; 220V 3 phase; 415V; 600V
Warranty 1 year parts warranty with lifetime technical support
Certifications CE, RoHS, FCC, REACH
Lead Time 20-30 working days after deposit
Optional Features
  • Filtration cycle system
  • Basket lifting system
  • Dunking system
  • Bubbling system (requires air compressor)
  • Electrolysis for complex molds
  • Cooling system for flammable materials
  • Constant temperature control
  • Roller barrel for bulk items
  • Anti-explosion electric box
  • Deionized water system
  • Multi-frequency options (28/40/20/68/80/132KHz)
  • Custom solutions available
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 0
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 1
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 2
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 3
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 4
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 5
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 6
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 7
2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 8
For heavily soiled parts, we recommend pre-cleaning by dipping or spraying before ultrasonic treatment. Small or complex items achieve best results when agitated during ultrasonic cleaning.
About Skymen Cleaning Equipment

Skymen Cleaning Equipment Shenzhen Co. Ltd. has specialized in ultrasonic cleaning technology for over 13 years. Our product range includes household cleaners, benchtop stainless steel units, and industrial-scale systems. With dedicated R&D teams, we develop customized solutions and welcome collaborative product development.

2000 Gallon Ultrasonic Cleaner for AC Coils with 66kW Heater 9
Frequently Asked Questions
What after-sales services do you provide?

We offer 12 months warranty on all SKYMEN ultrasonic cleaners. During this period, we provide free replacement parts and technical support. Continued technical assistance is available after the warranty period.

What are the advantages of ultrasonic cleaning?
  • Reduces manual labor requirements
  • Effective degreasing without organic solvents
  • Comprehensive cleaning of all surfaces and geometries
  • Accelerates processes like extraction and purification
  • Eliminates need for mechanical or chemical heat exchanger cleaning
Can ultrasonic cleaning damage parts?

Ultrasonic cleaning is generally safe for most components. However, the powerful implosion effects (thousands per second) require careful observation in some applications to ensure part integrity.
