تفاصيل المنتج:
|
نموذج لا.: | JP-1216-11512st | مزود الطاقة: | AC380V 50Hz ، 240V 60Hz 3Phase |
---|---|---|---|
تكرار: | 28/40 كيلو هرتز تردد واحد أو مزدوج | مادة الخزان: | الفولاذ المقاوم للصدأ SUS304/SUS 316 |
سخان: | 20-95 درجة مئوية قابلة للتعديل | مؤقت: | 1-99 ساعة قابلة للتعديل |
حزم الموجات فوق الصوتية: | ببراعة ، قابلة للتغيير | سعة الخزان: | 1500 لتر |
قوة الموجات فوق الصوتية: | 10800 واط | قوة التدفئة: | 36000 واط |
تحميل سلة: | 500 كجم | سماكة الخزان: | 3 مم |
بُعد الخزان الداخلي: | 2000 * 1200 * 800 مم | قوة المولد: | 1800W |
عدد محول الطاقة: | 216 قطعة | ||
إبراز: | Industrial Ultrasonic Cleaner stainless steel,Large capacity ultrasonic cleaner 4000L,Stainless steel tank ultrasonic cleaner,Large capacity ultrasonic cleaner 4000L,Stainless steel tank ultrasonic cleaner |

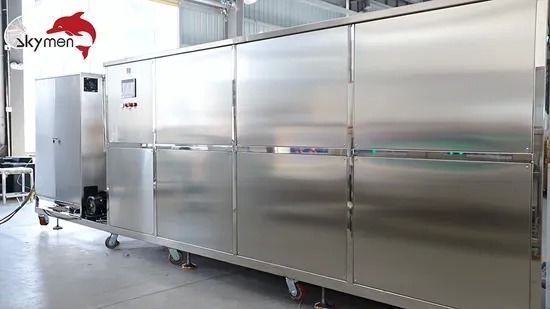

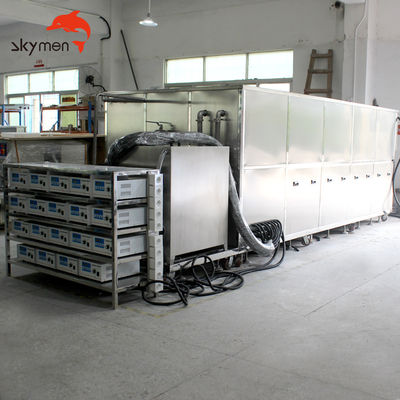

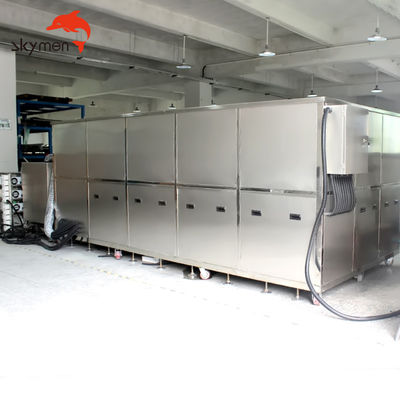

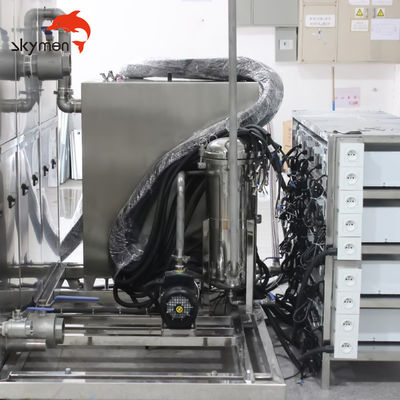

Professional-grade ultrasonic cleaning solution for mechanical and metal parts with capacities ranging from 1500L to 20000L. Features air cooler washing system for efficient cleaning performance.
Model | JP-1288ST |
---|---|
Function | Ultrasonic cleaning |
Ultrasonic Frequency | 28/40kHz (customizable) |
Tank Material | SUS 304 (SUS 316 customizable) |
Thickness of tank | 3mm |
Inner tank dimension | 2000×1200×800mm |
Tank Capacity | 1500L |
Transducer | 216pcs (Korean technology) |
Ultrasonic Power | 10800W |
Heating Power | 36000W |
Temperature Range | Room temperature ~ 95°C adjustable |
Basket Load Capacity | 500KG |
Power Supply | 380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
Warranty | 1 year warranty for spare parts, lifetime technical support |
Certifications | CE, RoHS, FCC, REACH |
Lead Time | 20-30 working days after deposit |
Ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other contaminants that accumulate on industrial parts. The technology reaches into grooves, internal passageways, hidden corners, seals, and other hard-to-access areas, eliminating hours of manual disassembly and reassembly.
The cavitation process creates millions of tiny bubbles that implode, releasing energy that gently but thoroughly cleans all surfaces in contact with the cleaning fluid. This method is non-damaging to parts while significantly reducing labor costs and cleaning time.
Ideal for use in:
Skymen Cleaning Equipment Shenzhen Co., Ltd. has specialized in ultrasonic cleaning technology for over 14 years. We offer high-quality products with comprehensive after-sales support, including both standard and custom-designed cleaning solutions.
